SMART KEY

CyberKey
Blue 2

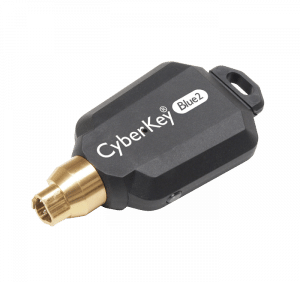

The CyberKey Blue 2 is a second generation bluetooth electronic key used to operate CyberLock electronic cylinders.

The CyberKey Blue 2 via a smart device app enables each user to activate & deactivate a CyberKey in-situ, as well as communicate with EKA CyberAudit-Web management software. The fact that the CyberAudit Link app communicates with the CyberAudit-Web means real time audit reporting and instant reassignment of access permissions. Permissions are updated via the CyberAudit Link app to the CyberKey Blue 2 when in a

mobile network coverage area or connected to Wi-Fi. If in the instance, an opening of a CyberLock cylinder is in an area with no mobile network coverage, then the CyberKey Blue 2 already contains the permissions, thus allowing delayed activation. Furthermore, users don’t need to open the CyberAudit Link application to deactivate their CyberKey Blue 2; however, for high security or sensitive environments, the CyberKey Blue 2 can be

deactivated by the user. Like all CyberKeys, CyberKey Blue 2 can be programmed to be activated and deactivated for a specified period of time. It has non-volatile memory that contains encrypted access codes, a list of CyberLocks it may access, schedules of dates and times it may access CyberLocks and a begin-end date range during which the CyberKey will operate.

specifications

———-

Mode Operation: Bluetooth 4.2 – Classic or Bluetooth low energy
Updates: Update the key using the mobile app anywhere there is internet access
Deactivation: Use the mobile app with or without internet access
Physical:
Fiberglass reinforced nylon, replaceable brass tip

Operating Temperatures: 32° to 122° F, 0° to 50° C
Dimensions: 3.22” L x 0.65” W x 1.63” H (81.8 mm x 16.5 mm x 41.4 mm)
Weight: 1.34 oz (38 g)
Power: Rechargeable lithium ion polymer
Recharge: Via the key tip
Memory: 4 MB for up to 12,000 audit trail records and access up to 12,000 locks
Visual Indicators: Red and blue LED indicator lights top and bottom, green LED indicator light in key tip
Audio Indicator: An embedded speaker
Communicator Link: Generation 2 communicators such as the VALIDIKEY 2 Vault and Station, USB Station with CyberLink 2
