EKA | CyberLock

ONE CONTROL INTERFACE

flex 2

many locks

one control interface

The CyberLock system has always included the ability to deploy systems that combined electromechanical systems with traditional hardwired systems that in the CyberLock system are known as Flex.

Flex II is the next generation of Flex and was designed to not only complement a traditional CyberLock system but to also be suitable for larger scale access control deployments and integrations.

Via Flex II CyberLock is able to integrate with and mange virtually any other access control device that uses a Weigand compatible input device such as an RFID card, electronic swipe, maglocks and even bio metric devices – all managed under one unified software platform.

HARDWARE:

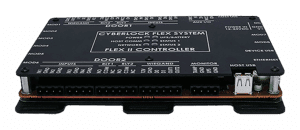

FLEX II CONTROLLER AND DOOR EXPANDER

  • Flex II Door Expander is compatible with the Flex II Hub allows each port on the controller to control up to four doors.
  • Each door may have multiple inputs and outputs in addition to a Wiegand interface.
  • Each door expander has four RS-485 ports to optionally connect Flex II FlashReaders, Flex Vaults or Keyports.
  • Each controller has eight ports to control up to 34 doors.
  • Both have removeable terminal blocks that are labelled to make wiring faster and more convenient.
  • Compatible with CAW 9.4 or newer.

the power of flex

  • Activate a video or still camera when a door is accessed
  • Open a door with an RFID card, using a PIN pad or combine them for more security
  • Sound an alarm or trigger an alert with a push of a button or when a door is left open for more than a set amount of time
  • Secure a gate with a CyberLock padlock (when using the Flex system to program a CyberKey which then opens padlock)
  • Activate a light when a door is opened. The light can be at the door for safety or at a security office as an indicator
  • Program a lobby door or employee entrance to lock and unlock on a set schedule
ONLY EKA CYBERLOCK /

flex is needed to:

initiate / revoke access priveleges

monitor access and trigger alarms

generate audit reports

One System

The CyberLock Flex System is an access control solution that offers both hard-wired and key-centric technologies managed within one software package.

Two Technologies

Use Flex modules to increase security at high traffic doors and incorporate additional security features such as cameras and alarms. Use CyberLock cylinders and padlocks–which don’t require wiring to secure other low use conventional doors and even remote locations.

The Perfect Union

There is no longer a need to choose between the versatility of a key-centric system and traditional, hard-wired access control. With the CyberLock Flex System, you have the best of both worlds.

Compatible

The Flex System is managed by CyberAudit management software, the same platform behind the award-winning CyberLock access control system composed of electronic lock cylinders and programmable smart keys.

Flexible

The heart of the system is built around the Flex System Hub access controller which provides connections for and power to weatherised modules that can be mixed and matched to fit your access control needs.

Expandable

A wide variety of other security devices such as HID readers, request-to-exit devices, alarms, door sensors and more can be added to the Flex System through the Door Controller & I/O module.

Infinite Possibilities

Protect assets by securing office doors, cabinets, gates and more.

Cache Memory

An internal access profile cache allows the Flex Hub to continue to function even during a network outage. Built in external battery management means power failure does not compromise performance.
