LCD screen provides a menu for viewing expirations and battery status as well as selecting key functions.

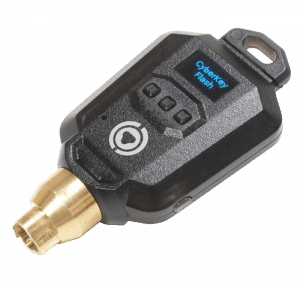

The CyberKey Flash is an electronic key that can access CyberLock, FlashLock, and CyberLock Flex access points. The three-button menu and display allows users to select key actions, view expirations, check battery status and wake up Bluetooth functions. Internal memory contains encrypted access codes, a list of locks it may access, schedules of authorised dates and times it may access locks, and a begin-end date range during which the key will operate.



Communication: Classic or Bluetooth low energy (4.2), IR, RFID (13.56Mhz)
Update the key using the mobile app anywhere there is Internet access
Activation or Deactivation:
Use the mobile app with or without Internet access
Fiberglass reinforced nylon, replaceable brass tip

Operating Temperatures: 32° to 122° F, 0° to 50° C
Dimensions: 3.22” L x 0.65” W x 1.63” H (81.8 mm x 16.5 mm x 41.4 mm)
Weight: 1.4 oz (40g)
Power: Rechargeable lithium ion polymer
Memory: 4 MB for up to 12,000 audit trail records and access up to 12,000 locks
Recharging: Via the key tip
Communicator Link: Generation 2 communicators such as the ValidiKey 2 Vault and Station, USB Station with CyberLink 2
Visual Indicators: Red and blue LED indicator lights
Audio Indicator: An embedded speaker
Compatibility: CyberLocks, FlashLocks, and RFID Systems
User Input: Three-button operation used to check key status and change key mode
Display: Blue OLED, 0.670’’ (17mm), 64×32 resolution
